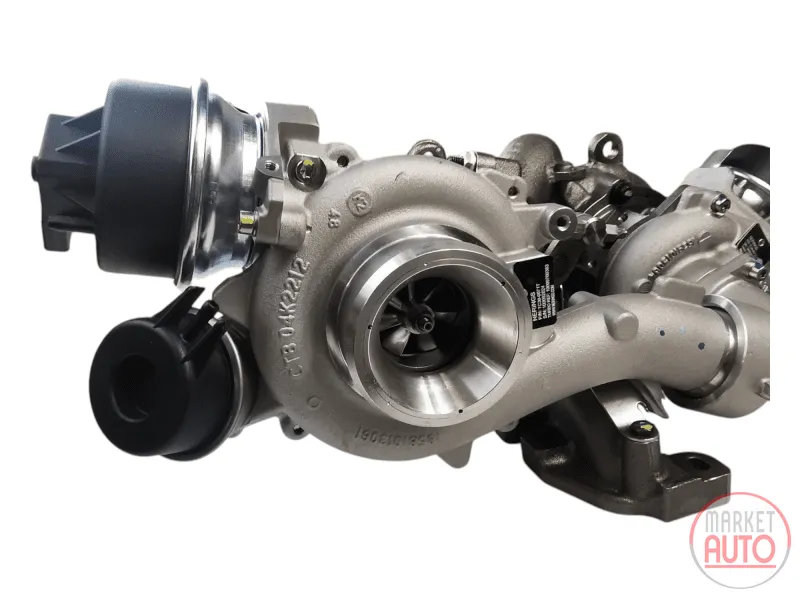

Turbocharger new with billet compressor wheels (Long manifold)(KKK)-NRGS

Turbocharger 10009880206 BorgWarner for VW T6 Transporter Multivan 2.0 TDIhas two exhaust manifold options please check pictures.

In the first few years until production date 12.08.2018 the following turbochargers were used in the VW T6 Transporter engines:

10009700191 03N145701C/03N145703E
10009700206 03N145701F/03N145703G
10009700234 03N145703M
10009700273 03N145703M

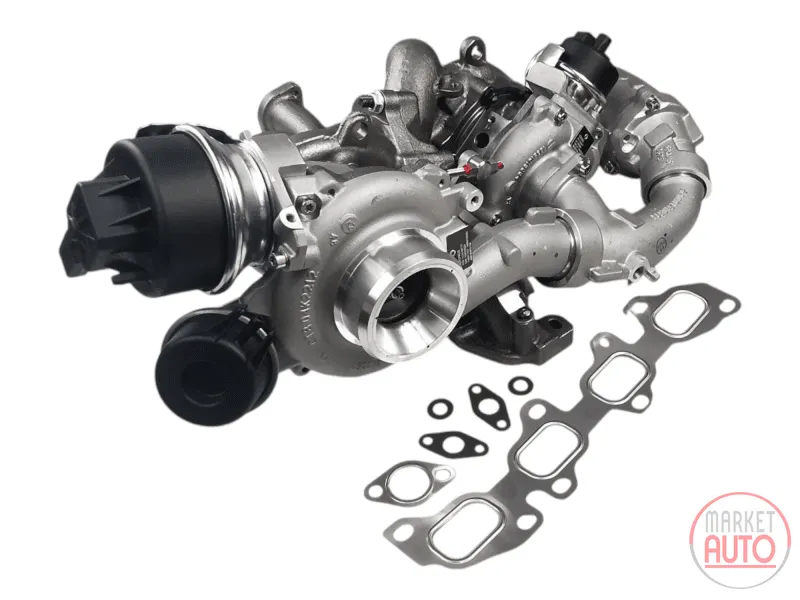

These turbochargers have an exhaust manifold with a longer EGR branch. Please see pictures to view difference.

The turbocharger from BorgWarner 100098800206 with the shorter EGR branch can be fitted as replacement but longer VW recirculation tube and gasket must be used to fit the turbocharger. These parts will be added to the order if shorter versions is being delivered.

• Total turbine number
  10009880383	KKK
  10009700383	KKK
  10009900191	KKK
  10009880191	KKK
  10009800191	KKK
  10009700191	KKK
  10009800153	KKK
  10009700153	KKK
  10009980206	KKK
  10009930206	KKK
  10009880206	KKK
  10009700206	KKK
  10009800234	KKK
  10009700234	KKK
  10009900234	KKK
  10009880234	KKK
  10009800286	KKK
  10009700286	KKK
  10009900273	KKK
  10009880273	KKK
  10009800273	KKK
  10009700273	KKK
  Large turbine number
  18509880010	KKK
  18509700010	KKK
  Small turbine number
  16359880018	KKK
  16359700018	KKK
  16359700023	KKK
  16359880023	KKK
  B03BV35147A	KKK

• 03N145701F	VW
  03N145704L	VW
  03N145703G	VW
  03N145703M	VW
  03N145703C	VW
  03N145703E	VW
  03N145701K	VW
  03N145701L	VW
  03N145703N	VW
  03N145703M
  Volkswagen Transporter T6 2.0 BiTDI
