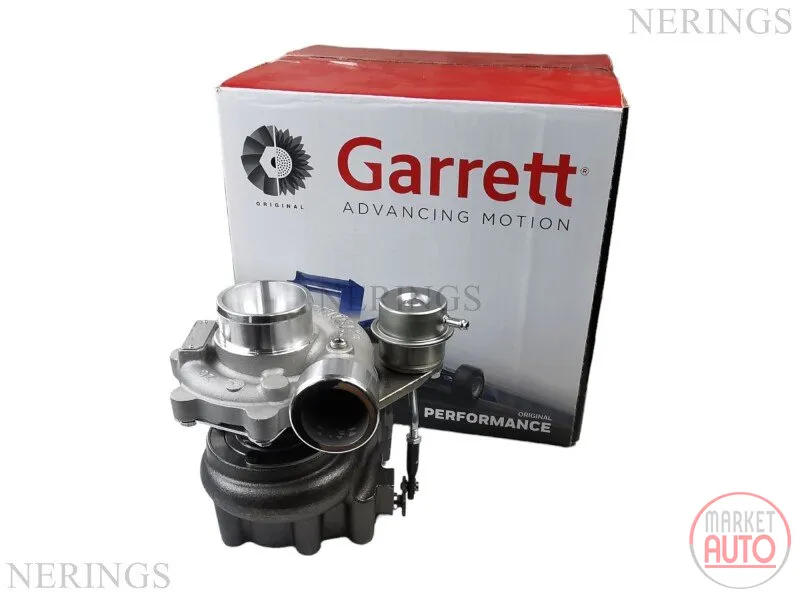

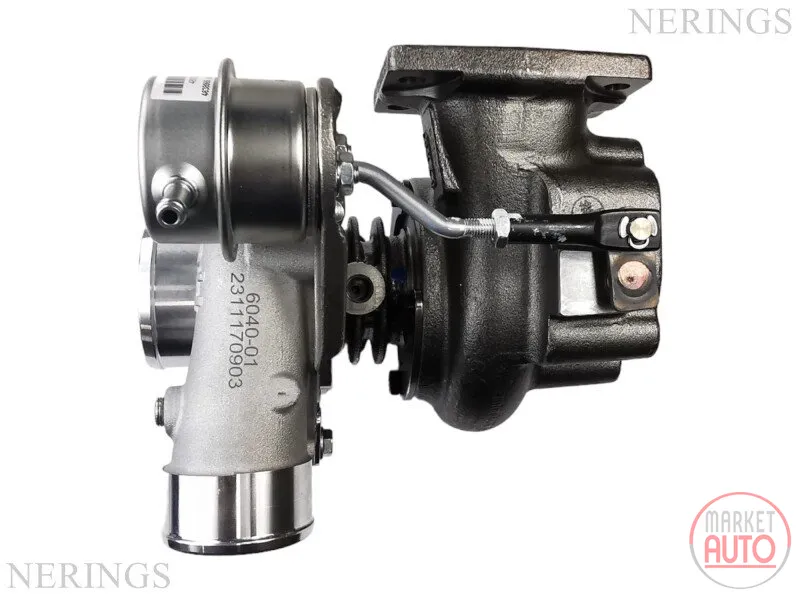

Turbocharger GBC17-25 new Garrett original- CHGT

Club Line is a product engineered for small engine displacements. This includes powersports personal watercraft and automobiles. These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups. GBC stands for GARRETT BOOST CLUB LINE.

Technical characteristics8960525003S GBC17250

Power: 150 250 HP
Volume: 06 1.5L

Standard rotation

Compressor side: TRIM 55 49.0036.00mm A/R 0.52

Compressor Air Inlet: 25 lbs/min 11.5 Kg/min

Compressor Air Outlet: 11 lbs/min 5 Kg/min

Turbine side: TRIM 80 44.0040.00mm A/R 0.50

Supports up to 250 horsepower

Forged FullyMachined Compressor Wheel

Journal Bearing Rotating Group

Internally wastegated turbine housing

Actuator calibrated at 0.5 bar

Turbine Inlet: T25

Turbine Outlet: 5 bolts

Engineered for small displacement engines including powersports personal watercraft andautomobiles
